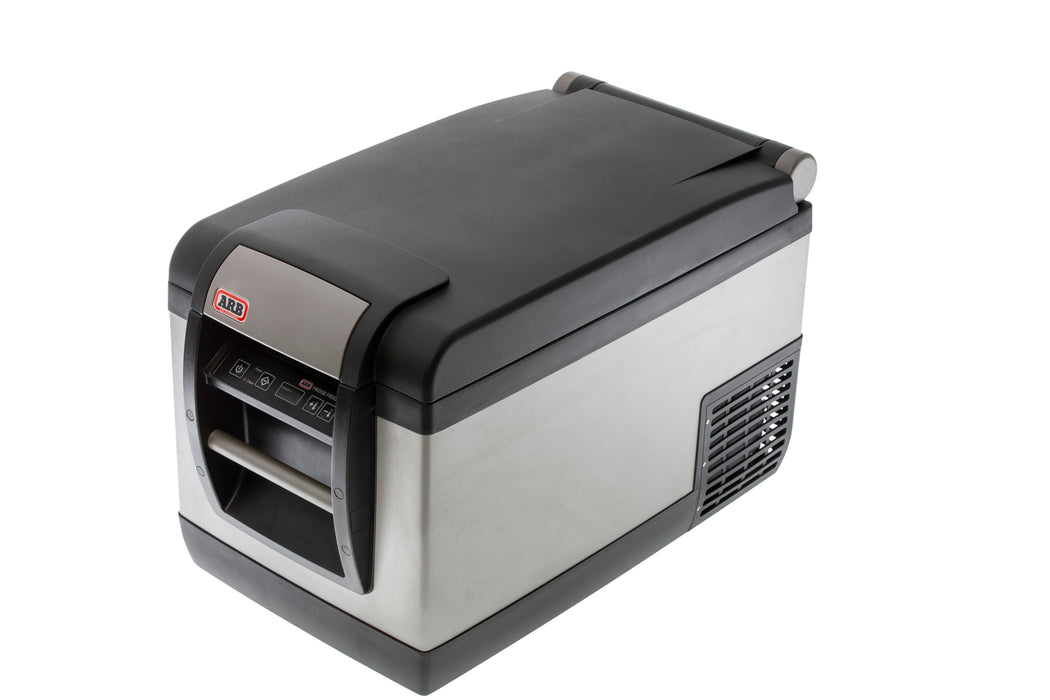

ARB CLASSIC SERIES II FRIDGE FREEZER
SKU: 10801352No off-road trip is complete without a place to keep the food fresh and, more importantly, the beers cold. With continually advancing technology, ARB has given it's current Classic Fridge Freezer an update. Introducing the Classic Fridge Freezer Series II that incorporates a new modern color scheme along with added features.
Featuring a new color scheme inspired by the recently released-ARB Jack, the gunmetal grey fridge body contrasts perfectly with the black highlights.
The Classic Fridge Freezer Series II has a dimmable, backlit touchpad for easy night time operation and 12V power input readout for simple voltage monitoring on the display. A transmitter allows remote display and control via a new app, which is available for download onto smart devices or ARB's LINX unit.**
The ARB Fridge Freezer app allows full control of the Series II Fridge via a mobile device or LINX. The user is able to turn the fridge on/off and manually adjust (or set via presets) the target temperature. The app will display the target temperature, the power input voltage, the fridge compressor status, and alert the user if the lid is left open.
The application allows the fridge to be switched between Celsius or Fahrenheit, offers battery protection notifications (high, medium, or low), and allows adjustment of the fridge display's brightness (high or low) in the settings. The user can also allocate preset temperatures to assign specific temperatures to a particular item in the fridge. For example, you would want your drink temperature to be different than an ice cream temperature.
For owners of previous ARB Fridges (post-2014 models), the new transmitter and app can be used to display the temperature, input voltage, and compressor status.
**The transmitter is included with all Series II Fridge Freezers.
What's New?
Color Scheme:
- Inspired by ARB Jack, the gun-metal color body of the fridge highlights the black plastics offering a smart and sleek contrast and improved UV resistance.
Electronic Updates:
- Backlit control panel buttons for ease-of-use in poor light conditions.
- Customizable dimmable display.
- 12V power input display to assist with monitoring battery condition.
Communicaion:
- A new transmitting module has been introduced that utilizes Bluetooth® connectivity that allows both monitoring and control of your Series II Fridge Freezer.
- For existing ARB Fridge customers, the new transmitter will work with any ARB Fridge Freezer manufactured post-2014.*
- The mobile application is available for free via Google Play or the Apple App Store.
- If you choose to fully integrate your fridge freezer into your vehicle via LINX, update to the latest version (1.4 or above) and the module will download for free onto your device.
App Fridge Control (only available on Classic Series II):
- Settings can be adjusted from the app such as; battery protection, unit measurement (°C or °F), display brightness, and preset temperature settings.
- Target temperature can be manually adjusted or altered via customizable preset settings.
- Fridge can be put into standby.
Series II vs Series I Fridge Freezers:
- Dimensions: All exterior and internal dimensions remain the same as the Series I Fridge Freezers
- Performance: ARB carried over the proven performance of the Series I Fridge Freezers utilizing the existing compressors and associated cooling components.
- Functionality: All the existing features and benefits such as removable lid, reversible basket, mounting points etc were carried over from Series I Fride Freezers.
Part # | Descriptions |
---|---|
ARB-10801352 | FRIDGE FREEZER 37QT CLASSIC SERIES II |
ARB-10801472 | FRIDGE FREEZER 50QT CLASSIC SERIES II |
ARB-10801602 | FRIDGE FREEZER 63QT CLASSIC SERIES II |
ARB-10801782 | FRIDGE FREEZER 82QT CLASSIC SERIES II |
Technical Specs:
Specs | 37QT | 50QT | 63QT | 82QT |
---|---|---|---|---|
Capacity | 37 Quart (50 x 12oz cans) | 50 Quart (72 x 12oz cans) | 63 Quart (90 x 12oz) | 82 Quart (120oz cans) |
External Dimensions | 16.9in (H) x 15in (W) x 27.8in (D) | 20in (H) x 15in (W) x 27.8in (D) | 17in (H) x 17.7in (W) x 33.3in (D) | 20in (H) x 17.7in (W) x 33.3in (D) |
Internal Dimensions | Fruit & Dairy Compartment 5in (H) x 11.2in (W) x 6in (D) Main Compartment 12.6in (H) x 11.2in (W) x 13.3in (D) |
Fruit & Dairy Compartment 8.1in (H) x 11.2in (W) x 6in (D) Main Compartment 15.5in (H) x 11.2in (W) x 13.3in (D) |
Fruit & Dairy Compartment 5in (H) x 14in (W) x 6in (D) Main Compartment 12.6in (H) x 14in (W) x 18.8in (D) |
Fruit & Dairy Compartment 8.1in (H) x 14in (W) x 6in (D) Main Compartment 15.8in (H) x 14in (W) x 18.8in (D) |
Weight | 45lbs | 53lbs | 54lbs | 60lbs |
Cooling Capacity | 50˚F to 0˚F | 50˚F to 0˚F | 50˚F to 0˚F | 50˚F to 0˚F |
Power | Built-in 12/24V DC and 100-240 AC power integrated battery protection system | Built-in 12/24V DC and 100-240 AC power integrated battery protection system | Built-in 12/24V DC and 100-240 AC power integrated battery protection system | Built-in 12/24V DC and 100-240 AC power integrated battery protection system |
Current Draw | 0.85 amps/hour average power consumption tested at 37.4˚F cabinet temp. 78.8˚F - 87.8˚F ambient temperature range. Test duration of 66 hours and supply voltage of 12V DC. |
0.85 amps/hour average power consumption tested at 37.4˚F cabinet temp. 78.8˚F - 87.8˚F ambient temperature range. Test duration of 66 hours and supply voltage of 12V DC. |
0.85 amps/hour average power consumption tested at 37.4˚F cabinet temp. 78.8˚F - 87.8˚F ambient temperature range. Test duration of 66 hours and supply voltage of 12V DC. |
0.85 amps/hour average power consumption tested at 37.4˚F cabinet temp. 78.8˚F - 87.8˚F ambient temperature range. Test duration of 66 hours and supply voltage of 12V DC. |
