Goose Gear LC200 Side x Side Drawer Module - 41 3/8" Wide x 40" Depth x 9-1/2" Height
SKU: 2425 GG
Land Cruiser 200 Series Specific Side x Side Drawer Module
This module is designed specifically for the LC 200 and comes in 9-1/2" height only to work with optional items such as sleeping platforms and storage compartments. The module measures 9-1/2" tall plus the LC 200 Top Plate for a total overall height of 10".

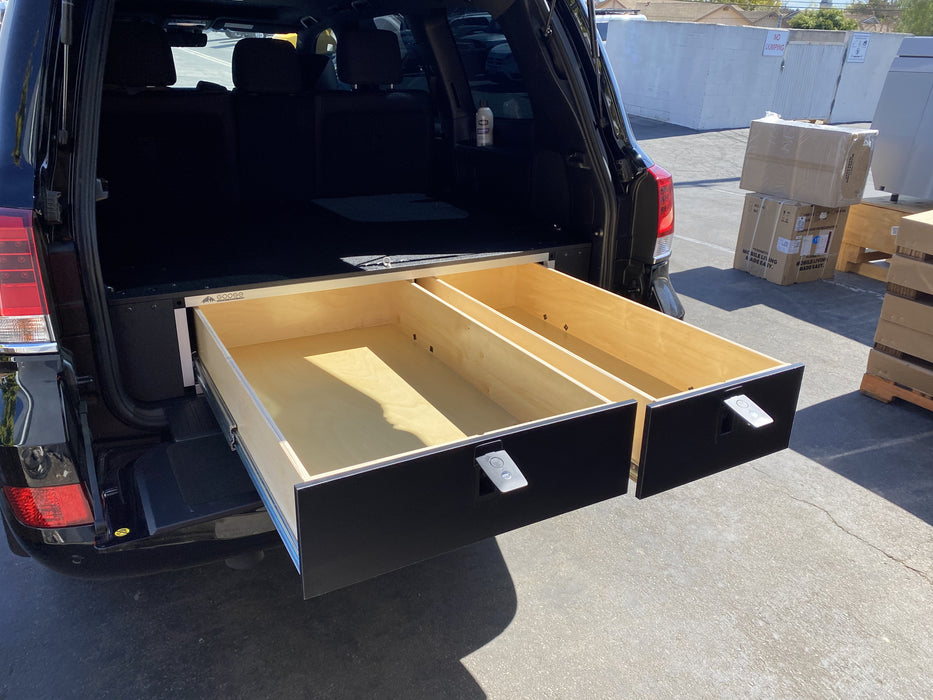

Side x Side Modules are available in 50/50 split, 1/3-2/3 split and 2/3-1/3 split configurations. The 1/3-2/3 split have the smaller drawer on the left side of the module and the 2/3-1/3 split have the smaller drawer on the right side of the module.

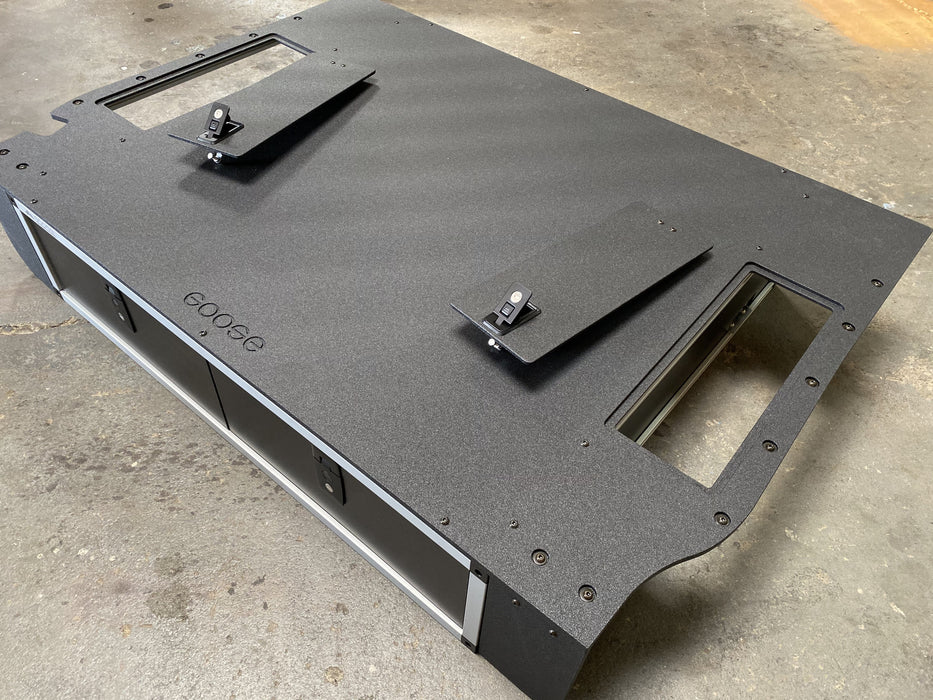

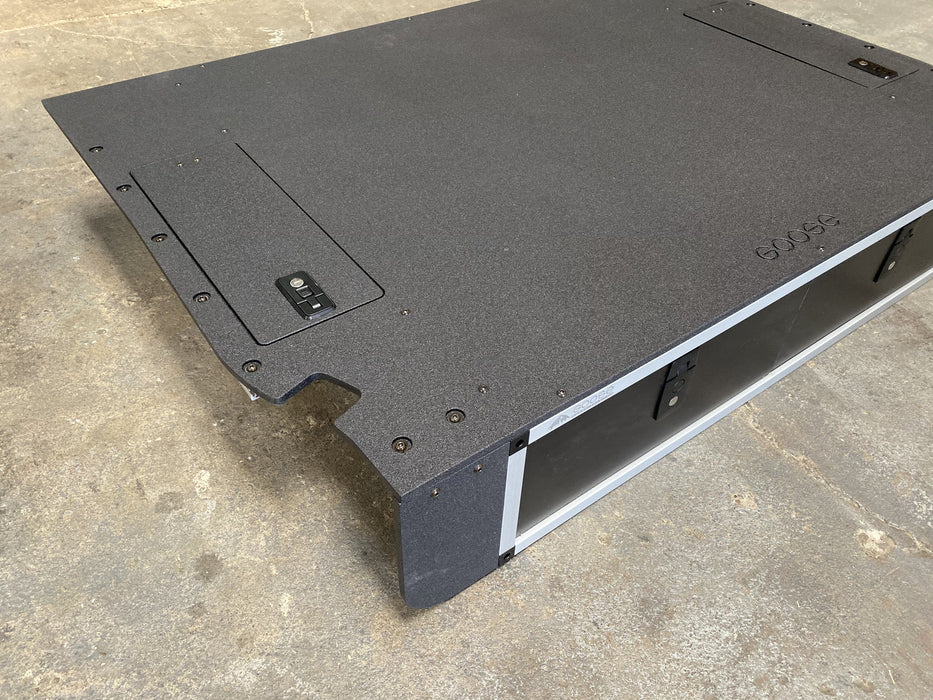

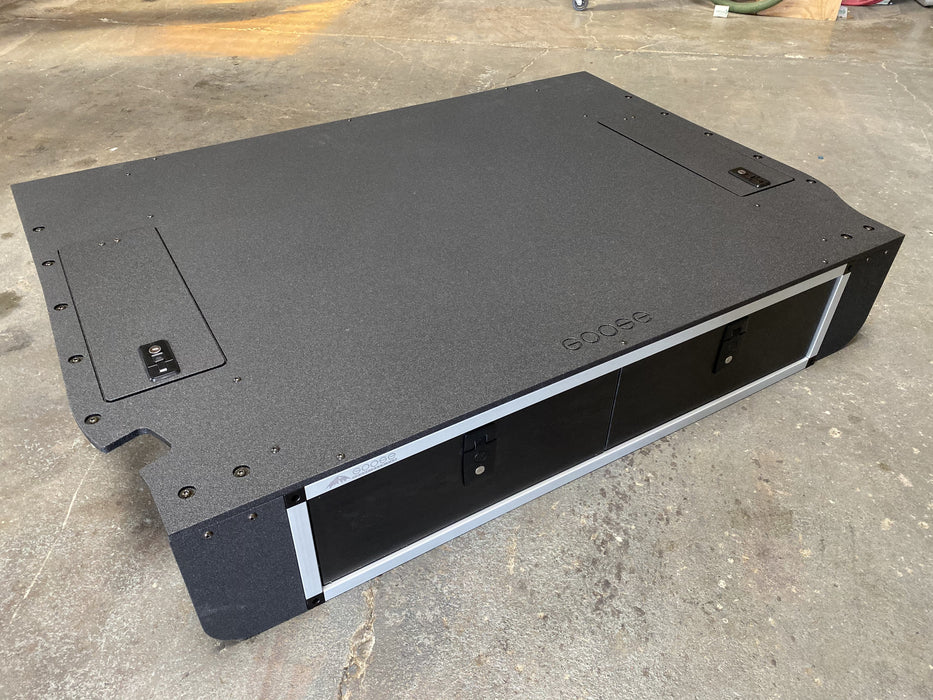

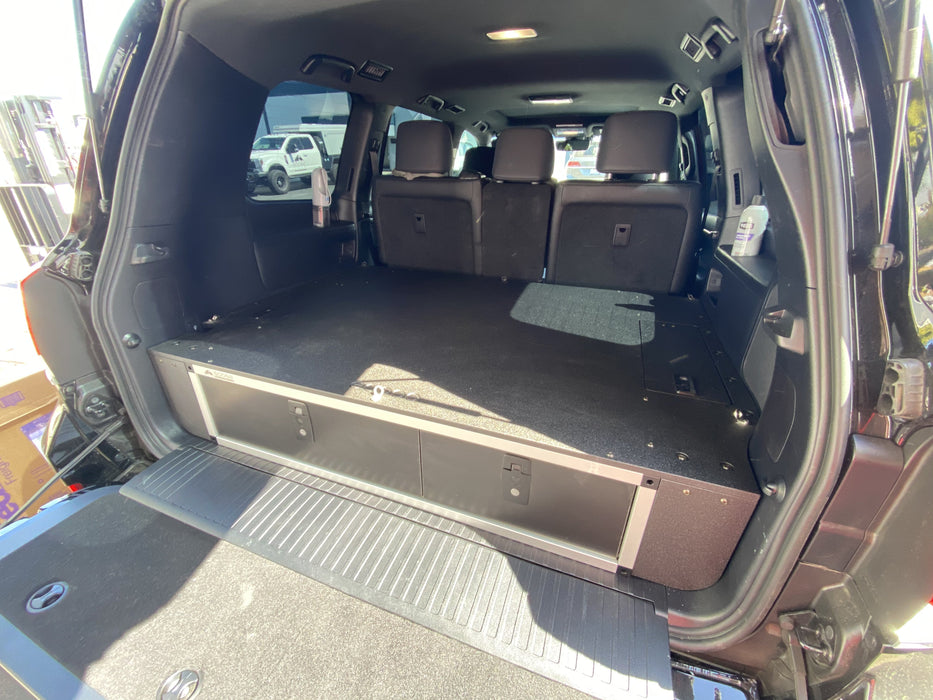

This Land Cruiser Specific Module features a bullet lined top plate for increased durability as well as a location to mount additional items such as anchors for fridge and cooler straps etc. The top plate is wider than the module and has wings that extend past the sides of the drawer module to follow the contours of the vehicle interior. On either side of the module there are two access doors in the top of the plate that create a lockable space just behind the wheel wells. This creates a flat surface that runs from wall to wall, seat back to back door.
Featuring 350# rated drawer guides with 34" of travel. We recommend no more than 100# per drawer. This module requires the LC200 Rear Plate System.
Total weight of system including the side x side drawer module, top plate and hatch doors is 123.4 pounds.
When installing this unit onto the LC 200 rear plate you will need to slide the drawer module back off the rear edge of the plate approximately 1" to get the top plate to properly align with the interior trim.
This system fits into the 2020 Heritage Edition.
ALL GOOSE GEAR PRODUCTS ARE MADE TO ORDER AND HAVE AN 8-12 WEEK LEAD TIME.
Land Cruiser 200 Series Specific Side x Side Drawer Module
This module is designed specifically for the LC 200 and comes in 9-1/2" height only to work with optional items such as sleeping platforms and storage compartments. The module measures 9-1/2" tall plus the LC 200 Top Plate for a total overall height of 10".
Side x Side Modules are available in 50/50 split, 1/3-2/3 split and 2/3-1/3 split configurations. The 1/3-2/3 split have the smaller drawer on the left side of the module and the 2/3-1/3 split have the smaller drawer on the right side of the module.
This Land Cruiser Specific Module features a bullet lined top plate for increased durability as well as a location to mount additional items such as anchors for fridge and cooler straps etc. The top plate is wider than the module and has wings that extend past the sides of the drawer module to follow the contours of the vehicle interior. On either side of the module there are two access doors in the top of the plate that create a lockable space just behind the wheel wells. This creates a flat surface that runs from wall to wall, seat back to back door.
Featuring 350# rated drawer guides with 34" of travel. We recommend no more than 100# per drawer. This module requires the LC200 Rear Plate System.
Total weight of system including the side x side drawer module, top plate and hatch doors is 123.4 pounds.
When installing this unit onto the LC 200 rear plate you will need to slide the drawer module back off the rear edge of the plate approximately 1" to get the top plate to properly align with the interior trim.
This system fits into the 2020 Heritage Edition.
ALL GOOSE GEAR PRODUCTS ARE MADE TO ORDER AND HAVE AN 8-12 WEEK LEAD TIME.
