SWITCH PROS SP-9100 8 SWITCH PANEL POWER SYSTEM
SKU: SP9100
$659.00
The Switch Pro 9100 Power System allows you to control up to 8 different accessories all from one convenient location eliminating the clutter on your dash and in your engine bay.
- 100 User-selectable switch legends (not shown)
- Eight user-programmable switches
- Four 35A circuits and four 20A circuits
- Waterproof, Solid State 125A Power Module
- RGB Backlighting provides unlimited color options, using Color Picker on App
- Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
- Switches can be programmed for:
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Automatic Power-Up upon vehicle start up
- Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
- Sleep Mode for minimal power consumption
- Color Coded circuit wires
- LED Input Status Indicators for easy troubleshooting
- Time Delay Off function available for all circuits
- Splash proof switch panel with Polycarbonate overlay faceplate
- Program and control the system from switch panel pad or smart phone
- Bluetooth interface with FREE Apple or Android App
- Battery Voltage Readout on App screen
- No Fuses or Bulky Relay box
- Built-In Bluetooth Module

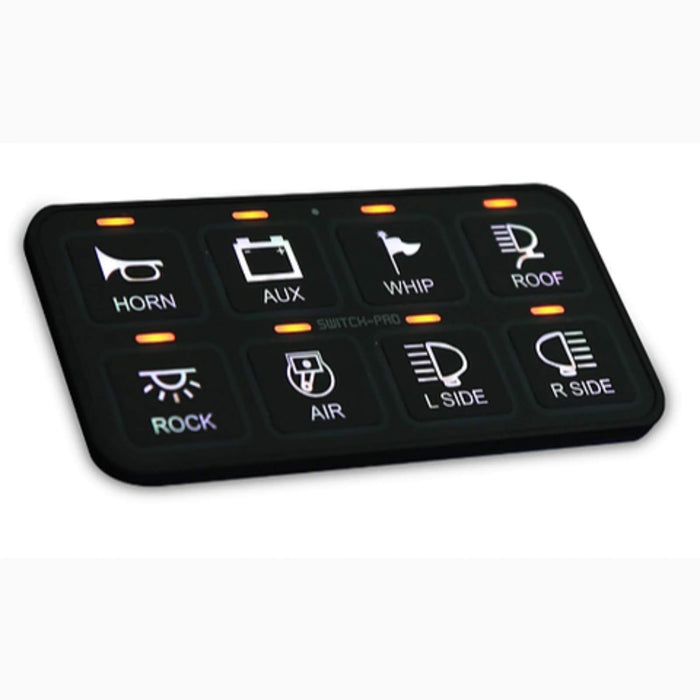

Switch Panel Specs:
- RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting

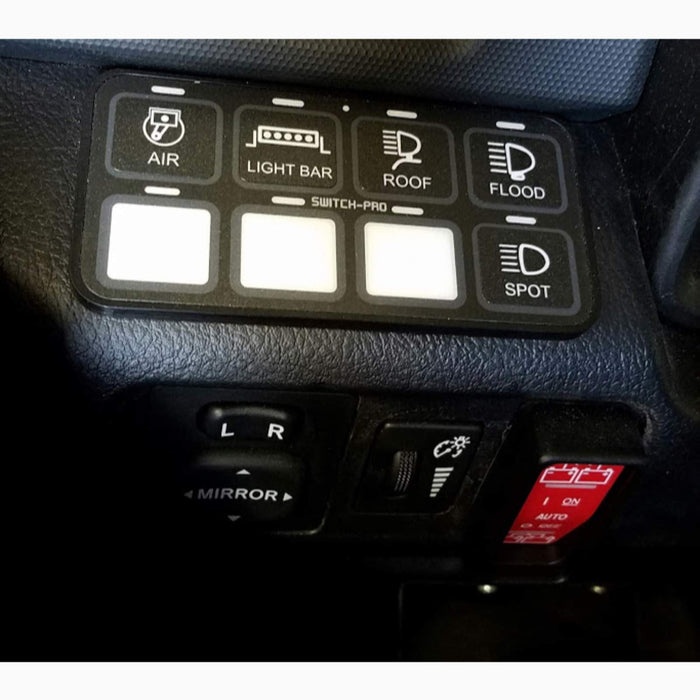

- Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
- Orange LED switch indicators
- 100 User Selectable Legends
Power Module Specs:
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- 125A maximum rating
- Waterproof and Solid State
- 6”L x 3”W x .5”H (excluding connectors)
- LED Input Status Indicators for easy troubleshooting
- Underhood rated 125° to -40°C

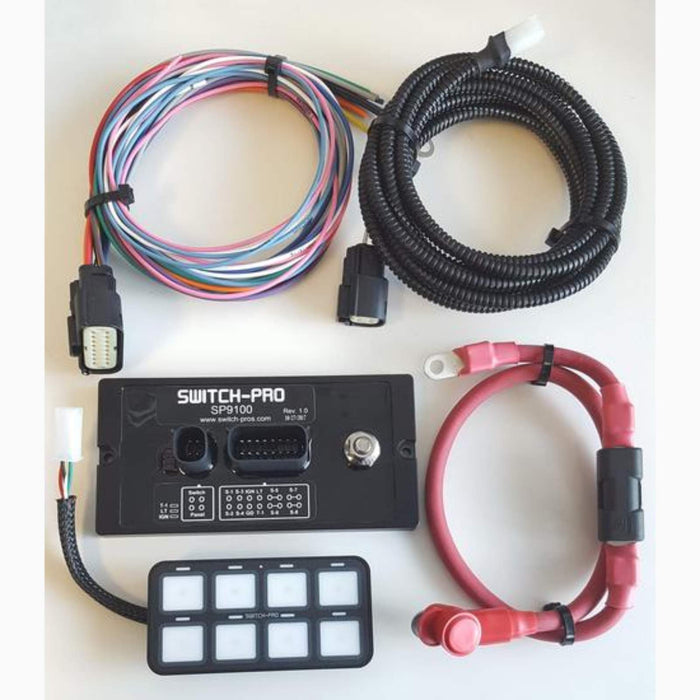

Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Color Coded Output wires
- Wire harness with Waterproof, sealed automotive grade connectors
- Power Cable with 125A inline fuse
Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
The Switch Pro 9100 Power System allows you to control up to 8 different accessories all from one convenient location eliminating the clutter on your dash and in your engine bay.
- 100 User-selectable switch legends (not shown)
- Eight user-programmable switches
- Four 35A circuits and four 20A circuits
- Waterproof, Solid State 125A Power Module
- RGB Backlighting provides unlimited color options, using Color Picker on App
- Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
- Switches can be programmed for:
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Automatic Power-Up upon vehicle start up
- Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
- Sleep Mode for minimal power consumption
- Color Coded circuit wires
- LED Input Status Indicators for easy troubleshooting
- Time Delay Off function available for all circuits
- Splash proof switch panel with Polycarbonate overlay faceplate
- Program and control the system from switch panel pad or smart phone
- Bluetooth interface with FREE Apple or Android App
- Battery Voltage Readout on App screen
- No Fuses or Bulky Relay box
- Built-In Bluetooth Module
Switch Panel Specs:
- RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
- Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
- Orange LED switch indicators
- 100 User Selectable Legends
Power Module Specs:
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- 125A maximum rating
- Waterproof and Solid State
- 6”L x 3”W x .5”H (excluding connectors)
- LED Input Status Indicators for easy troubleshooting
- Underhood rated 125° to -40°C
Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Color Coded Output wires
- Wire harness with Waterproof, sealed automotive grade connectors
- Power Cable with 125A inline fuse
Switches can be programmed to be: On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of backlighting and indicator LEDs.
